| 원래 장소: | 중국 |
| 브랜드 이름: | XZH Test |
| 인증: | CE/ISO |
| 모델 번호: | xhzs506ys |

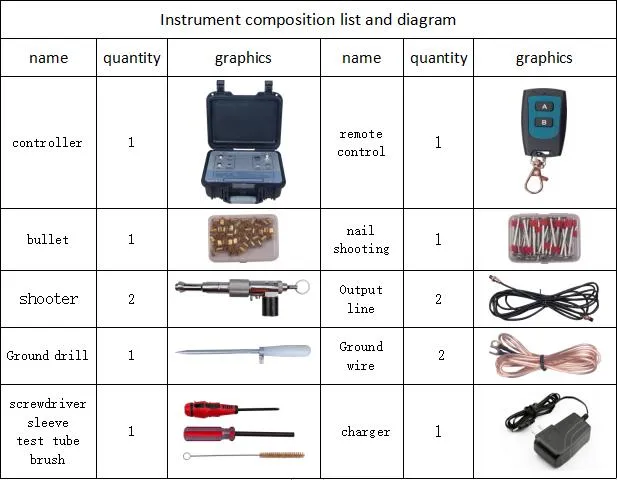

The cable piercing device consists of two components: the shooter and the controller. The shooter is a lightweight, low-speed piston-type device designed for piercing cables. It features a rational structure and is extremely convenient to install and fix at any angle. The controller employs advanced electronic detection circuits, enabling the device to remotely fire a nail into the cable to cause a short circuit. If the cable is charged, it will discharge upon firing. If it is not powered, it means the cable has been de-energized.
Features:
1. When the angle between the two guns is not 120°, at least one gun body can achieve the purpose of stabbing and form a short circuit point;| Shooting device | 2 gun bodies; |
| Remote control distance | greater than 10 meters, can be remote controlled across the wall; |
| Control line length | 5 meters; |
| Clamp diameter | φ30-150mm; |
| Working power supply | charging AC 220V/50Hz, built-in battery can work continuously for more than 10 hours; |

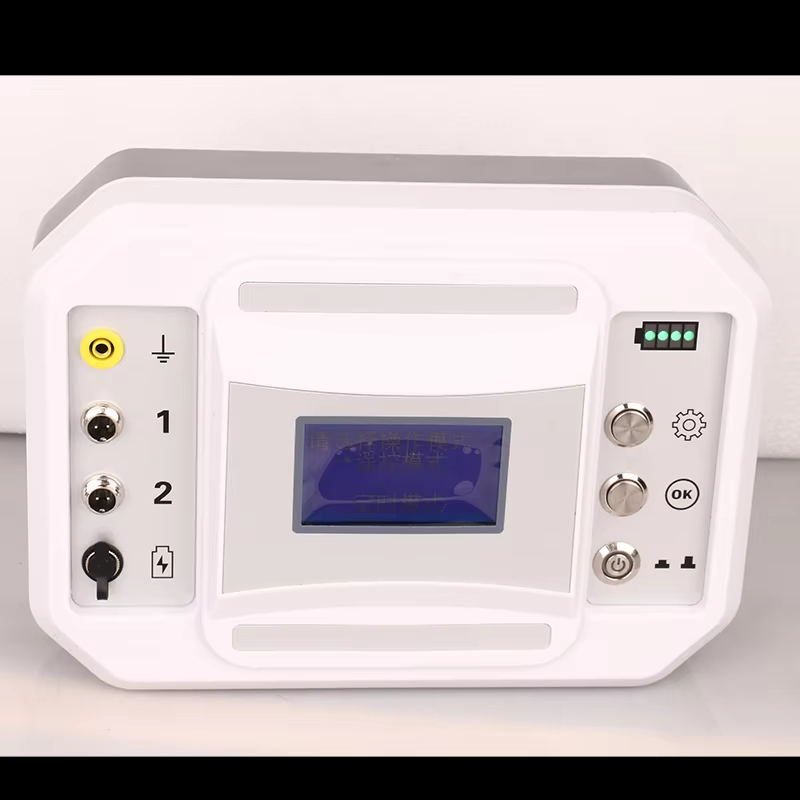

| Controller | 270×230×120mm 2.5kg; |
| Complete set | 470×380×210mm 15.5kg (double gun 506Y). |
| Cable diameter mm | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| Nail specifications | PS27C8 | PS37C8 | PS47C8 | PS52C8 | ||||
| Specification | black | blue | yellow | red | Recommended Use | 35kV and below | 35kV and above |
| Power | smallest | Small | middle | big | Use S1 yellow | Use S1 red (6.8*11mm) |
