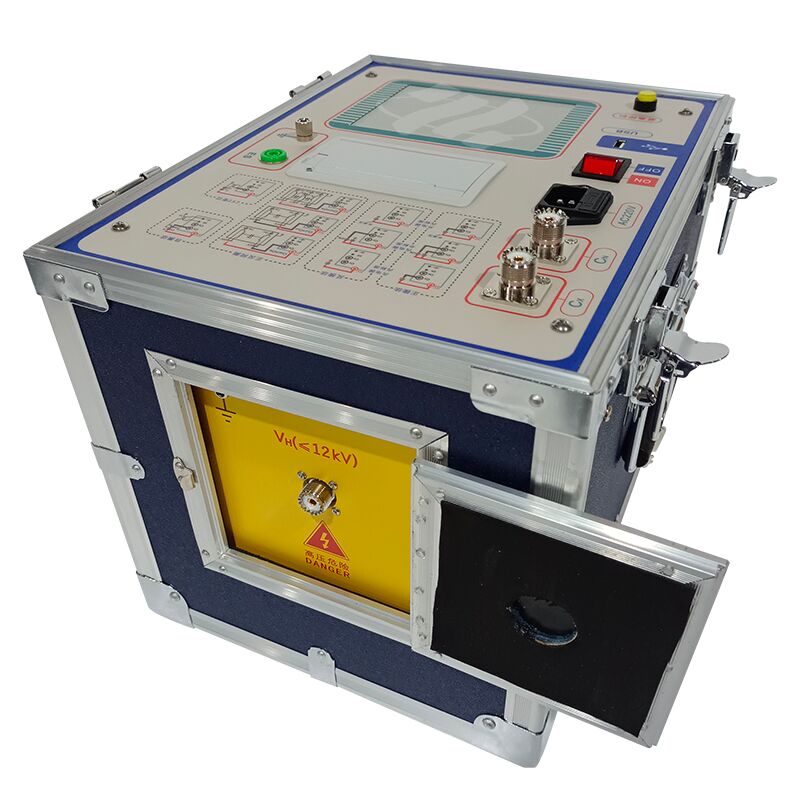

CVT Test 45/55Hz 10kV Dielectric Loss Measurement Upgraded XHJS1000A Tester

Name: CVT Test 45/55Hz 10kV Dielectric Loss Measurement Upgraded XHJS1000A Tester
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHJS1000B
Price: 7,970.00 USD
Availability: InStock

제품 상세정보:

원래 장소:	Xi'an, Shaanxi, 중국
브랜드 이름:	XZH TEST
인증:	ISO,CE
모델 번호:	XHJS1000B

상세 정보

원래 장소:

Xi'an, Shaanxi, 중국

브랜드 이름:

XZH TEST

인증:

ISO,CE

모델 번호:

XHJS1000B

정전용량 범위:

3pF~60nF

일하는 힘:

AC220V ±10%, 50±1Hz

LV 출력:

3~50V 전압, 3~30A 전류

HV 전력:

0.5~10kV, 최대 출력 전류 200mA

해결:

유전손실 0.001%

강조하다:

High Light

강조하다:

10kV dielectric loss tester

CVT test measurement device

AC DC hipot tester

Trading Information

최소 주문 수량:

1개

가격:

Price Negotiable

포장 세부 사항:

목재 포장

배달 시간:

8~10일

지불 조건:

티/티

공급 능력:

2000Units/년

제품 설명

Product Brief

Upgraded from XHJS1000A, XHJS1000B Dielectric Loss Tester adds CVT ratio & phase error measurement. It integrates variable frequency power supply, single-chip microcomputer and electronic tech, realizing auto frequency conversion, A/D conversion and data calculation. 45/55Hz pure sine wave output, auto pressurization, and max 10kV voltage output.

Key Advantages

Complex current method for high-precision testing
Complies with oil dielectric loss measurement standards
One-click CVT self-excitation test for C1/C2 capacitance & dielectric loss
IVDDV + variable frequency tech for reverse connection test
Multi-protection: Overcurrent, grounding
CVT ratio: 10～99999 (±1% error)
Phase measurement: 0～359.9° (±0.1° error)

Specs

Capacitance range: 3pF～60nF
Accuracy: Capacitance ±(1.0%+5pF) | Dielectric loss ±(1%+0.04%) | Frequency ±0.01
Resolution: Capacitance 0.001pF | Dielectric loss 0.001%
HV power: 0.5～10kV, 200mA max output current
LV output: 3～50V voltage, 3～30A current
Working power: AC220V ±10%, 50±1Hz

Suitable For

Power system (generation/transmission/transformation/distribution)
Factories, mines & large manufacturing enterprises
Metallurgy, petrochemical, smelting & water treatment
Transportation (ports, railways, highways, airports, municipal lamps)
Large enterprises & institutions (logistics depts.)
Construction industry & property management companies
Professional power installation & commissioning companies
