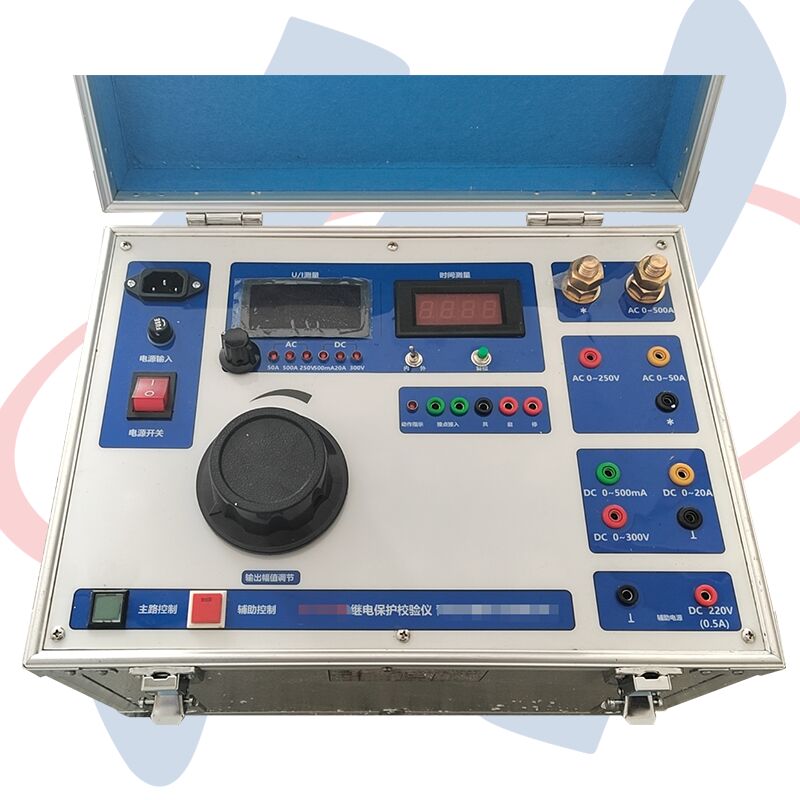

Single-phase Current Protection Tester with LCD

Name: Single-phase Current Protection Tester with LCD
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHJB612
Price: 4,300.00 USD
Availability: InStock

제품 상세정보:

원래 장소:	중국 산시성 시안
브랜드 이름:	XZH TEST
인증:	ISO CE
모델 번호:	XHJB612

상세 정보

원래 장소:

중국 산시성 시안

브랜드 이름:

XZH TEST

인증:

ISO CE

모델 번호:

XHJB612

작동 전원:

AC 220V ±10%, -15~40℃, 정확도 75%

강조하다:

High Light

강조하다:

Large screen LCD Relay Protection Tester

Single-phase Microcomputer Relay Tester

Current protection Single-phase current protection tester

Trading Information

최소 주문 수량:

1세트

포장 세부 사항:

목재 포장

배달 시간:

5-8 근무일

지불 조건:

티/티

공급 능력:

3000단위/년

제품 설명

Product Overview

The XHJB612 Relay Protection Tester is capable of testing and verifying various electromagnetic, rectifier, transistor, and integrated circuit relays, including their operate voltage/current, reset voltage/current, operate time, reset time, as well as the operate value, reset value, charge-discharge time, and operate time of reclosing relays. It can also test the starting current, induction element operate current, instantaneous element operate current, and operate time of GL-type and LL-type inverse-time relays.

Performance Features

Large-screen LCD English display for clear and easy reading.
Real-time contact status indication; measuring ranges switched via keys for simple and convenient on-site operation.
Equipped with passive digital output, flexibly applicable for auxiliary control during testing.

Technical Specifications

☆ Output: 4.5-digit digital voltmeter, 3.5-digit digital ammeter, 0.5% accuracy class

AC Current: 0～5A, 0～50A, 0～150A

AC Voltage: 0～250V, <5A

DC Current: 0～20A

DC Voltage: 0～250V, <5A; 0～12V, <0.5A

☆ Auxiliary Power Supply: 220V, 0～4A

☆ Time Measurement: 0～9999.9999S, Accuracy: 0.0001S

☆ Operating Power Supply: AC 220V ±10%, -15～40℃, 75% accuracy
