| 원래 장소: | xi'an |
| 브랜드 이름: | XZH TEST |
| 인증: | CE |
| 모델 번호: | XHDD503 |

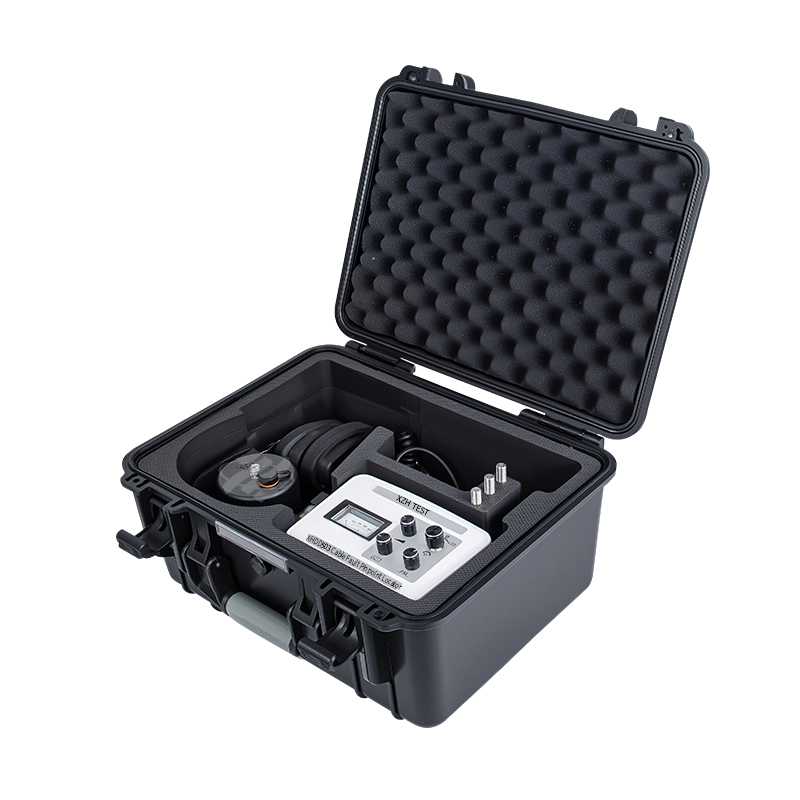

The cable fault locating instrument uses the principle of vibration pickup and electromagnetic induction to determine the specific location of the cable fault point. With the help of a high-voltage pulse generator, the flashover discharge at the fault point is carried out.
Product Features
1. Synchronously receive the vibration waves, sound waves and electromagnetic waves generated when the fault point discharges;
2. The sound and magnetic channels are designed separately, powered separately, and have stronger anti-interference ability;
3. The analog meter design makes the signal strength and trend clear at a glance;
4. The zero level can be adjusted arbitrarily, suitable for various strong and weak sites.
5. Equipped with multi-layer physical isolation signal sensors, waterproof level IP65.
6. Built-in large-capacity lithium battery, ultra-long standby time, equipped with a fast charger.
7. Small and light, easy to operate, and simple interface.
Operation interface introduction
Cable fault pointing instrument panel diagram
1. Pointer meter: indicates the magnetic field strength during flashover discharge at the fault point;
2. Volume adjustment: adjust at fixed point and path so that our ears can hear more appropriate sound signals;
3. Working mode: select working mode (off, fixed point, path);
4. Frequency adjustment: adjust the receiving frequency during path detection so that our ears can hear more easily identifiable path signals. Adjustment at fixed point can effectively avoid radio signals;
5. Level adjustment: adjust the benchmark of magnetic field strength so that the meter head can swing effectively;
1. Input channel: connect to the probe sensor for precise positioning (connect to the probe sensor for path detection);
2. Output channel: connect to dedicated headphones.
