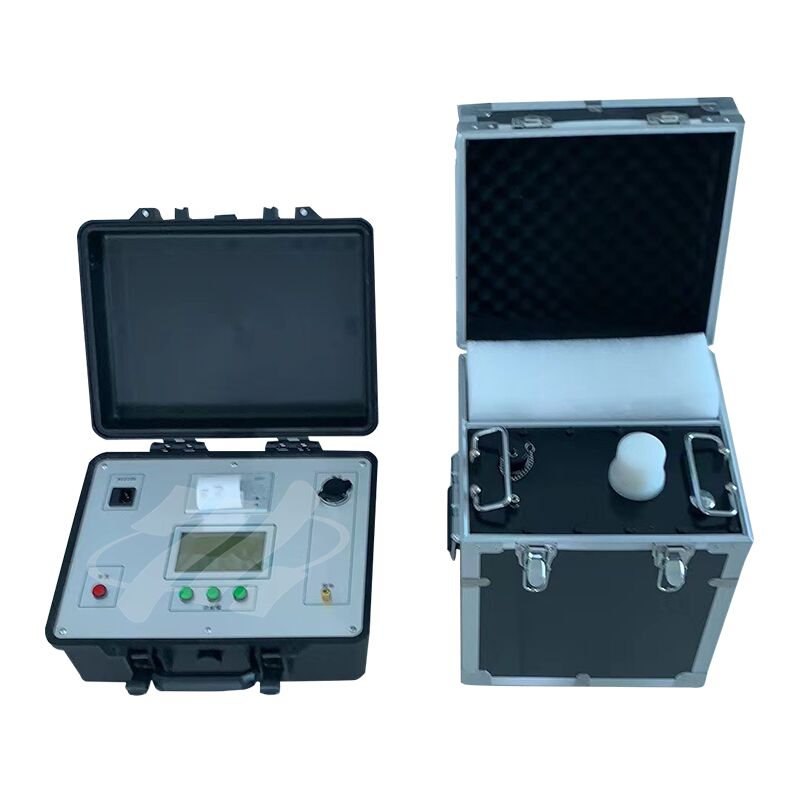

Industrial VLF AC DC Hipot Tester, Integrated Tan Delta Measuring Instrument

Name: Industrial VLF AC DC Hipot Tester, Integrated Tan Delta Measuring Instrument
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDP 시리즈
Price: 7,970.00 USD
Availability: InStock

제품 상세정보:

원래 장소:	Xi'an, Shaanxi, 중국
브랜드 이름:	XZH TEST
인증:	ISO,CE
모델 번호:	XHDP 시리즈

상세 정보

원래 장소:

Xi'an, Shaanxi, 중국

브랜드 이름:

XZH TEST

인증:

ISO,CE

모델 번호:

XHDP 시리즈

정격 출력:

30KV/50KV/80KV

측정 정밀도:

선택적 출력 주파수:

0.1Hz, 0.05Hz, 0.02Hz

최대 부하:

1.1μF(0.1Hz), 2.2μF(0.05Hz), 5.5μF(0.02Hz)

피크 전압 편차(양/음):

3% 이하

파형 왜곡율:

≤5%

강조하다:

High Light

강조하다:

Industrial VLF Hipot Tester

AC DC Hipot Tester with Tan Delta

Integrated Tan Delta Measuring Instrument

Trading Information

최소 주문 수량:

1개 단위

가격:

협상 가능

포장 세부 사항:

목재 포장

배달 시간:

8~10일

지불 조건:

티/티

공급 능력:

2000Units/년

제품 설명

Product Introduction

Designed with advanced digital frequency conversion and microcomputer control technology, the XHDP ultra-low frequency high-voltage equipment achieves full automation in boosting, step-down, data measurement and safety protection. With small overall dimension and light weight, it is equipped with a high-definition LCD screen for intuitive viewing. It can visually show output waveforms and generate printable test reports for on-site testing.

Key Advantages

All parameters including current, voltage and waveforms are collected directly at the high-voltage terminal.
Fast over-current and over-voltage protection, with operation reaction time less than 20 milliseconds.
Built-in high-low voltage closed-loop negative feedback design, ensuring stable output without capacitive voltage rise.

Specification Data

Rated Output: 30kV/50kV/80kV, Measurement Precision: 3%
Optional Output Frequencies: 0.1Hz, 0.05Hz, 0.02Hz
Maximum Load: 1.1μF (0.1Hz), 2.2μF (0.05Hz), 5.5μF (0.02Hz)
Peak Voltage Deviation (Positive/Negative): ≤3%
Waveform Distortion Rate: ≤5%
Working Conditions: Ambient Temperature -10℃ to +40℃, Relative Humidity ≤85%
Input Power: AC 220V±5%, 50Hz
