Professional Series Resonance Experimental Apparatus | HV Insulation Test for Power System

Name: Professional Series Resonance Experimental Apparatus | HV Insulation Test for Power System
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHBP-135/108
Price: 7,970.00 USD
Availability: InStock

제품 상세정보:

원래 장소:	Xi'an, Shaanxi, 중국
브랜드 이름:	XZH TEST
인증:	ISO,CE
모델 번호:	XHBP-135/108

상세 정보

원래 장소:

Xi'an, Shaanxi, 중국

브랜드 이름:

XZH TEST

인증:

ISO,CE

모델 번호:

XHBP-135/108

정격 출력 전압:

최대 500kV(AC RMS)

출력 주파수:

20~300Hz

공명 전압 파형:

순수 사인파, 왜곡률 <1.0%

테스트 용량:

최대 1000kVA

최대 전력 연속 작동:

60 분

강조하다:

High Light

강조하다:

HV insulation test apparatus

Resonance experimental power tester

AC DC hipot test equipment

Trading Information

최소 주문 수량:

1개 단위

가격:

협상 가능

포장 세부 사항:

목재 포장

배달 시간:

8~10일

지불 조건:

티/티

공급 능력:

2000Units/년

제품 설명

Product Overview

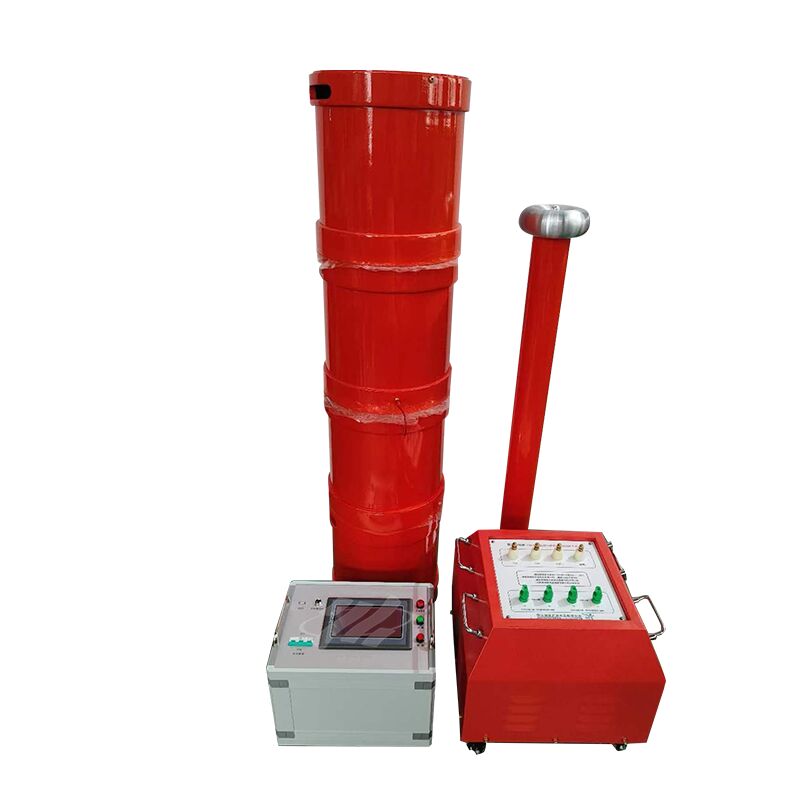

XHBP series variable frequency resonant test device comprises variable frequency control power supply, excitation transformer, reactor and capacitive voltage divider as main parts. A rectifier silicon stack connected after the capacitive voltage divider enables DC withstand voltage testing of equipment.

Performance Features

Compact and lightweight reactors for the same voltage and capacity rating.
Low temperature rise under rated load.
Dry-type epoxy casting for high mechanical strength and good electrical insulation.
Variable frequency control power supply with large capacity margin, powerful protection, high-quality output waveform and stable performance.
Easy operation with multiple working modes.
Convenient on-site power access via 220V or 380V single-phase power.

Technical Parameters

Rated output voltage: 500kV max (AC RMS)
Output frequency: 20 to 300Hz
Resonant voltage waveform: Pure sine wave, distortion rate <1.0%
Test capacity: 1000kVA max
Full-power continuous operation: 60 minutes
Quality factor: 30 to 90
Frequency regulation: 0.1Hz sensitivity, <0.05% instability
Working power: 380/220V±15%, 50Hz±5%
