Lightweight Series Resonance Experimental Apparatus | Low Power Consumption High Precision

Name: Lightweight Series Resonance Experimental Apparatus | Low Power Consumption High Precision
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHBP-44/44
Price: 7,970.00 USD
Availability: InStock

제품 상세정보:

원래 장소:	Xi'an, Shaanxi, 중국
브랜드 이름:	XZH TEST
인증:	ISO,CE
모델 번호:	XHBP-44/44

상세 정보

원래 장소:

Xi'an, Shaanxi, 중국

브랜드 이름:

XZH TEST

인증:

ISO,CE

모델 번호:

XHBP-44/44

와이드 볼테지 입력:

380/220V±15%/50Hz±5%

정밀한 주파수 조절:

0.1Hz 감도, <0.05% 불안정성

품질 계수 범위:

30~90

최대 전력 연속 작동:

60 분

최대 테스트 용량:

1000kVA

공명 전압 파형:

순수 사인파, 파형 왜곡 <1.0%

강조하다:

High Light

강조하다:

lightweight resonance experimental apparatus

low power consumption hipot tester

high precision AC DC tester

Trading Information

최소 주문 수량:

1개 단위

가격:

협상 가능

포장 세부 사항:

목재 포장

배달 시간:

8~10일

지불 조건:

티/티

공급 능력:

2000Units/년

제품 설명

Product Introduction

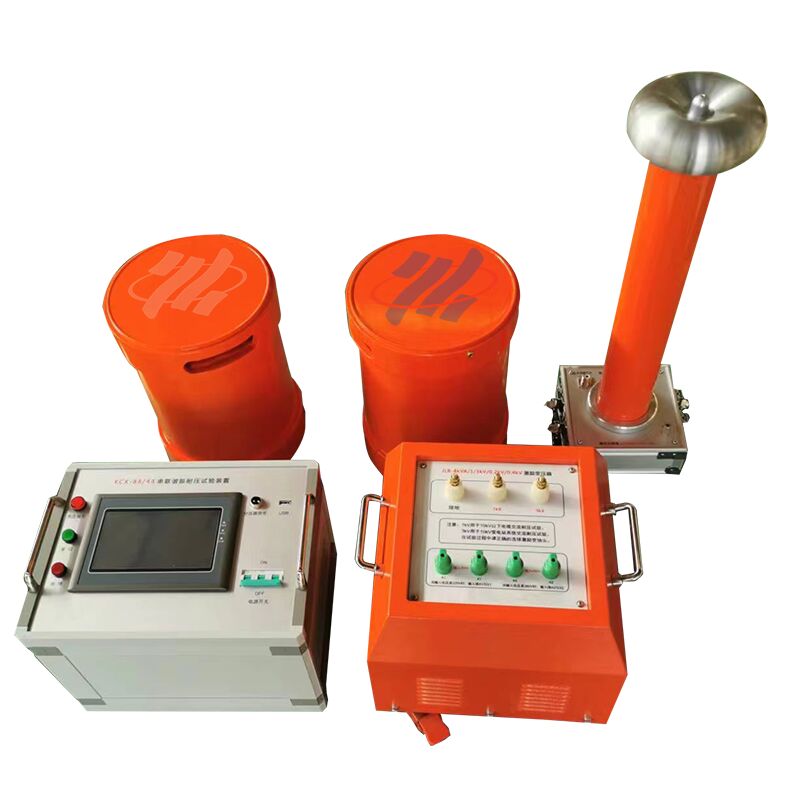

The XHBP series variable frequency resonant test device is an integrated testing solution consisting of core components: variable frequency control power supply, excitation transformer, reactor and capacitive voltage divider. Its flexible design allows the connection of a rectifier silicon stack post capacitive voltage divider, enabling seamless DC withstand voltage testing for various equipment.

Outstanding Performance Traits

Space-saving & portable reactors: Same voltage class and capacity with reduced volume and weight for easy handling.
Low heat generation under rated load, ensuring long-term stable operation.
Advanced dry-type epoxy casting process delivers exceptional mechanical strength and reliable electrical insulation.
High-performance VF control power supply: Abundant capacity margin, comprehensive protection functions, perfect sine wave output and consistent stability.
User-friendly operation with multiple customizable working modes to fit diverse testing demands.
Convenient on-site power supply via universal 220V or 380V single-phase power input.

Core Technical Parameters

Rated output voltage: Up to 500kV (AC RMS)
Output frequency range: 20 to 300Hz
Resonant voltage waveform: Pure sine wave, waveform distortion <1.0%
Max test capacity: 1000kVA
Full-power continuous operation: 60 minutes
Quality factor range: 30～90
Precision frequency regulation: 0.1Hz sensitivity, <0.05% instability
Wide voltage input: 380/220V±15%/50Hz±5%
