Comprehensive Diagnostic System for Cable Insulation with DC Output 0-30/60kV

Name: Comprehensive Diagnostic System for Cable Insulation with DC Output 0-30/60kV
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHOW560
Price: 1,050.00 USD
Availability: InStock

제품 상세정보:

원래 장소:	시안 산시
브랜드 이름:	XZH TEST
인증:	ISO
모델 번호:	XHOW560

상세 정보

원래 장소:

시안 산시

브랜드 이름:

XZH TEST

인증:

ISO

모델 번호:

XHOW560

강조하다:

High Light

강조하다:

DC Output 0-30/60kV Cable Fault Locator

Comprehensive Diagnostic Cable Insulation Diagnostic System

Cable Insulation DC Output Cable Tester

Trading Information

최소 주문 수량:

1세트

포장 세부 사항:

목재 포장

배달 시간:

5-8 근무일

지불 조건:

티/티

공급 능력:

3000단위/년

제품 설명

XHOW560

XHOW560 Cable Insulation Comprehensive Diagnostic System adopts the LCR damped oscillation principle. It evaluates cable insulation comprehensively following the DC charging of the cable.

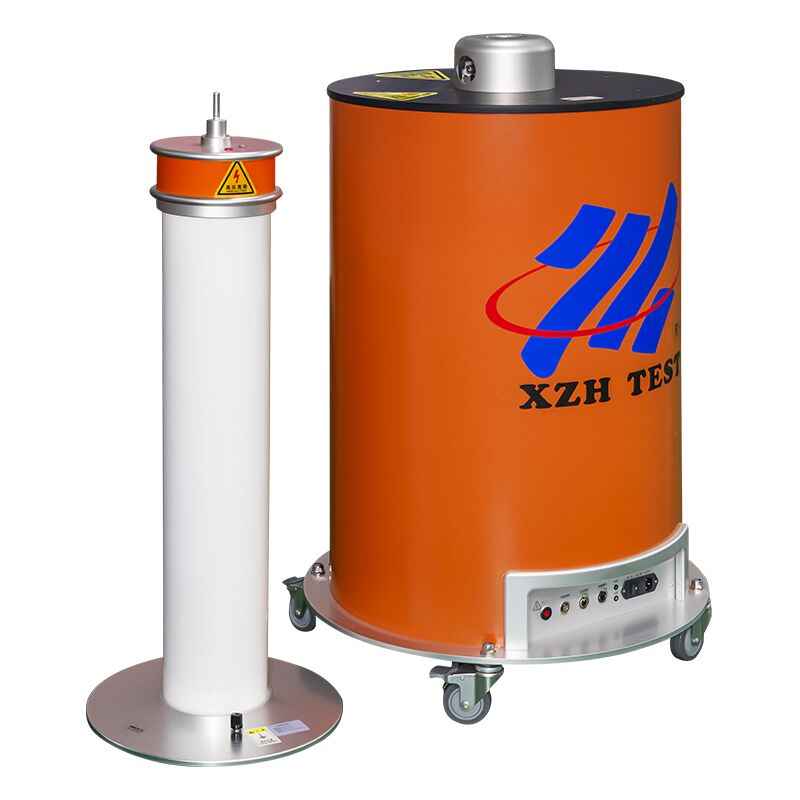

Comprehensive Diagnostic System for Cable Insulation with DC Output 0-30/60kV 0

Technical Specifications

Partial Discharge Bandwidth: 100-500kHz

Partial Discharge Positioning: 100kHz-20MHz

Resolution: 0.01%

DAC Output: 30/60kV 20-500Hz

VLF Output: 30/60kV 0.05, 0.1, 0.5Hz

DC Output: 0-30/60kV

Partial Discharge Test: 5pC-10nC Resolution: 1pC

Application Sites:

Power systems: power generation, transmission, transformation, and distribution;
Factories and Mines: large-scale manufacturing plants and various mining companies;
Metallurgy and Petrochemicals: smelting, chemical processing, water treatment, etc.;
