| 원래 장소: | xi'an |
| 브랜드 이름: | XZH TEST |
| 인증: | CE |

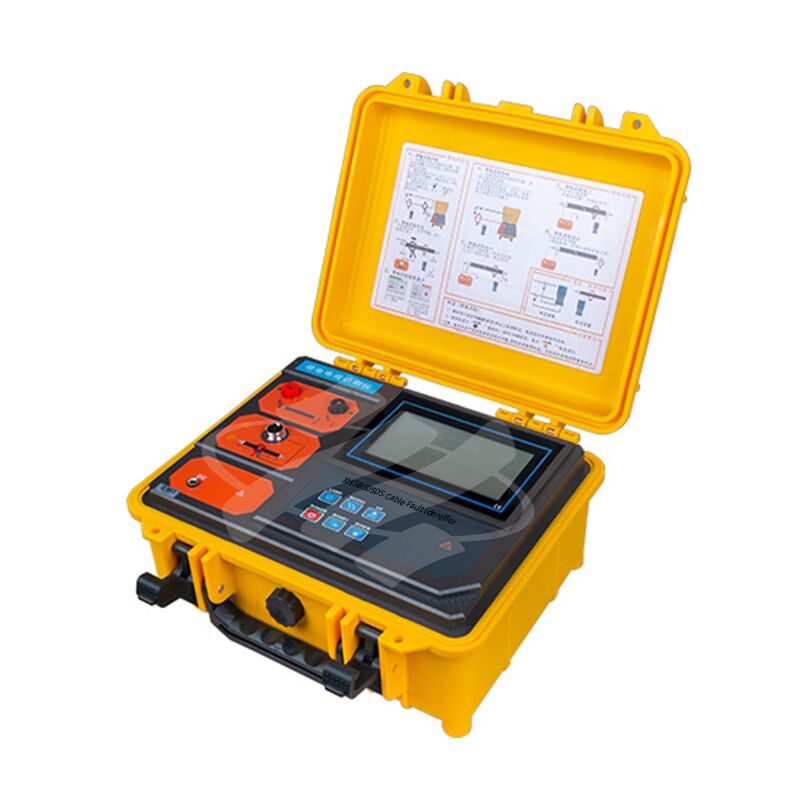

| 모델 번호: | XHSB505DS |
| Transmission frequency | For live identification: 625Hz, 1562Hz, 2500Hz, 10000Hz; For power-off identification: 1562Hz, 2500Hz. Use the up and down arrow keys to adjust the transmission frequency. |
| transmission line length |
3m |
| Display mode | Large LCD screen displays the remaining battery voltage in real time, with backlight. |
Identifying Power-Out Cables:
Wrap the Φ200mm flexible current clamp around each cable in the direction of the arrows shown in the diagram.
The wiring diagram below is suitable for on-site identification of target cables that are power-out cables. Please ensure that the arrows on the flexible current clamps point to the far end of the cable (the end where the cable core is grounded), i.e., pay attention to the direction of the positive input of the pulse-coded current signal.
When performing live or de-energized identification, do not bring the coil interface of the flexible current clamp close to the cable for measurement to avoid errors.
Note: Do not place the cable near the coil connector during measurement to avoid errors.
