| 원래 장소: | xi'an |
| 브랜드 이름: | XZH TEST |
| 인증: | CE |
| 모델 번호: | XHGG501B |

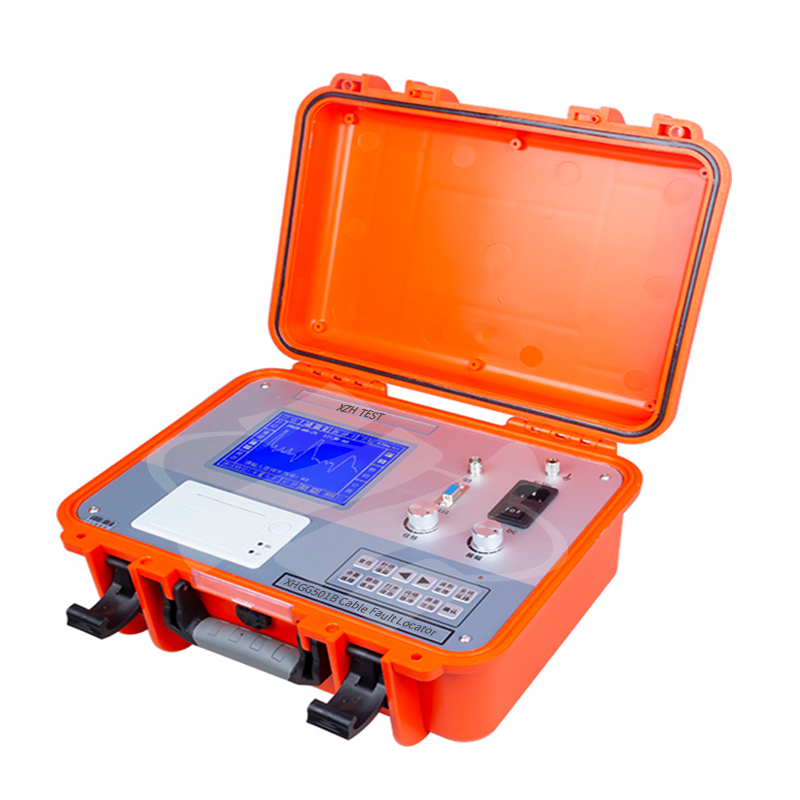

XHGG501B is designed for underground power cable fault per-locating, to provide quick accurate and safe measurement solution. Measure the power cable of different sections, different media of various materials, short circuit, open circuit short line fault and the low and middle resistance fault.
Main Features
| Sampling mode |
automatic continuous sampling, never miss any discharge waveform |
| Sampling frequency |
100MHz, minimum resolution 0.5m (100m/us) |
| Measurement accuracy | Coarse measurement error: ±10m (absolute value) or 1% (relative value) |
| Sampling frequency |
100MHz, minimum resolution 0.5m (100m/us) |
High-voltage flashover method (ARC-single shot) tests the cable fault distance.
Measuring cable wave speed
