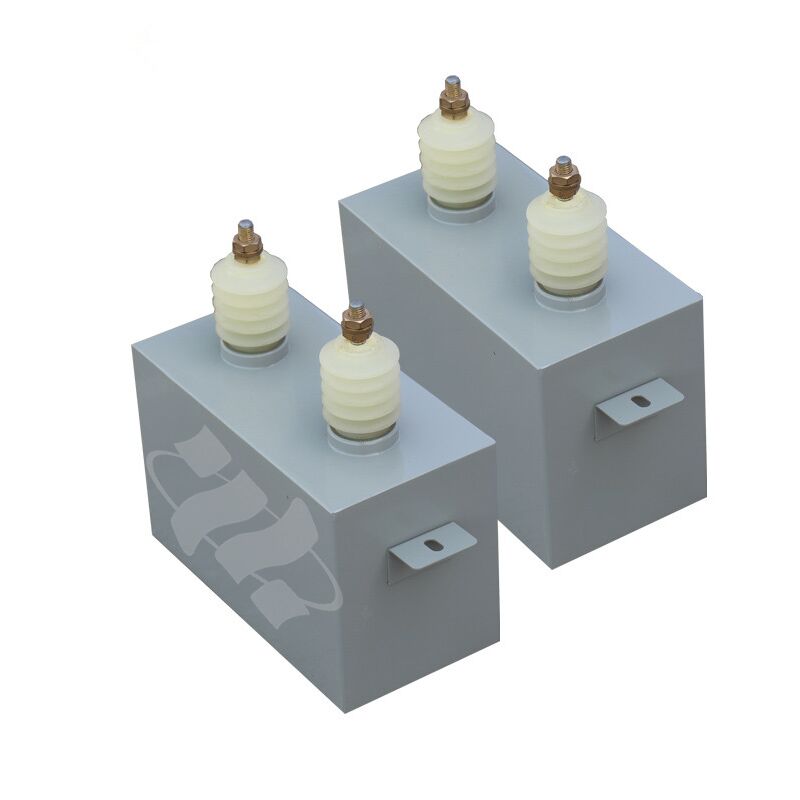

30kv 4UF Rapid-Charge Pulse Capacitor

Name: 30kv 4UF Rapid-Charge Pulse Capacitor
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHCC-4/30
Price: 1,050.00 USD
Availability: InStock

제품 상세정보:

원래 장소:	중국
브랜드 이름:	XZH Test
인증:	CE/ISO
모델 번호:	XHCC-4/30

상세 정보

원래 장소:

중국

브랜드 이름:

XZH Test

인증:

CE/ISO

모델 번호:

XHCC-4/30

강조하다:

High Light

강조하다:

30kv pulse capacitor

rapid-charge pulse capacitor

cable fault locator capacitor

Trading Information

최소 주문 수량:

1 유닛

포장 세부 사항:

나무 상자

배달 시간:

5-8 일

지불 조건:

t/t

공급 능력:

2000 단위/년

제품 설명

XHCC-4/30

Product Description

The pulse capacitor is super cool! It takes in energy from a small power supply and holds onto it for a while. Then, when the moment is right, it lets go of all that energy super fast. This creates a powerful burst of current and a lot of energy. It's really useful in high - voltage impulse discharge tests, high - energy physics stuff, oscillation circuits, and even in geological exploration.

Ambient temperature: -20~+50ºC;
Altitude: ≤2000 meters, if it is greater than 2000 meters, it will be explained separately;
Capacitance error: ±5%;
Voltage resistance between poles: 1.1~1.5Un 2s Pole to shell: 2Un 60s;
Insulation resistance: RC≥7500MΩ·uF;
Loss: ≤0.01 (1kHz).

Precautions and Common Faults
1. It is strictly forbidden to hit and collided the high-voltage pulse capacitor, otherwise the internal film will be easily damaged.
2. When using Pulse Energy Storage Capacitors, please read the instructions and the content of the capacitor label to prevent overvoltage use.
3. During use, pay attention to the withstand voltage and safety distance of the connecting wire.
4. After the test is completed, the high voltage end must be fully discharged.
5. During use, if there is abnormal sound inside the capacitor, it is recommended to stop using it, as there is a risk of internal insulation damage.
6. If there are bulges or bulges on the capacitor shell, it is recommended to stop using it, as there is a risk of deterioration of the internal material and insulation reduction.
