Potable Power Underground Cable Fault Identifier Multiple Frequency

Name: Potable Power Underground Cable Fault Identifier Multiple Frequency
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHSB505DS
Price: 1,050.00 USD
Availability: InStock

제품 상세정보:

원래 장소:	중국
브랜드 이름:	XZH Test
인증:	CE/ISO
모델 번호:	XHSB505DS

상세 정보

원래 장소:

중국

브랜드 이름:

XZH Test

인증:

CE/ISO

모델 번호:

XHSB505DS

강조하다:

High Light

강조하다:

underground cable fault locator

potable power cable identifier

multiple frequency fault detector

Trading Information

최소 주문 수량:

1 유닛

포장 세부 사항:

나무 상자

배달 시간:

5-8WORK 일

지불 조건:

t/t

공급 능력:

2000Unit/년

제품 설명

XHSB505DS

Model NO.

XHSB505DS

Certification

CE, ISO

Transport Package

Wooden

Specification

420mm× 250mm× 340mm

Trademark

XZH TEST

Origin

China Xi'an

HS Code

9031809090

Production Capacity

100 Pieces /Year

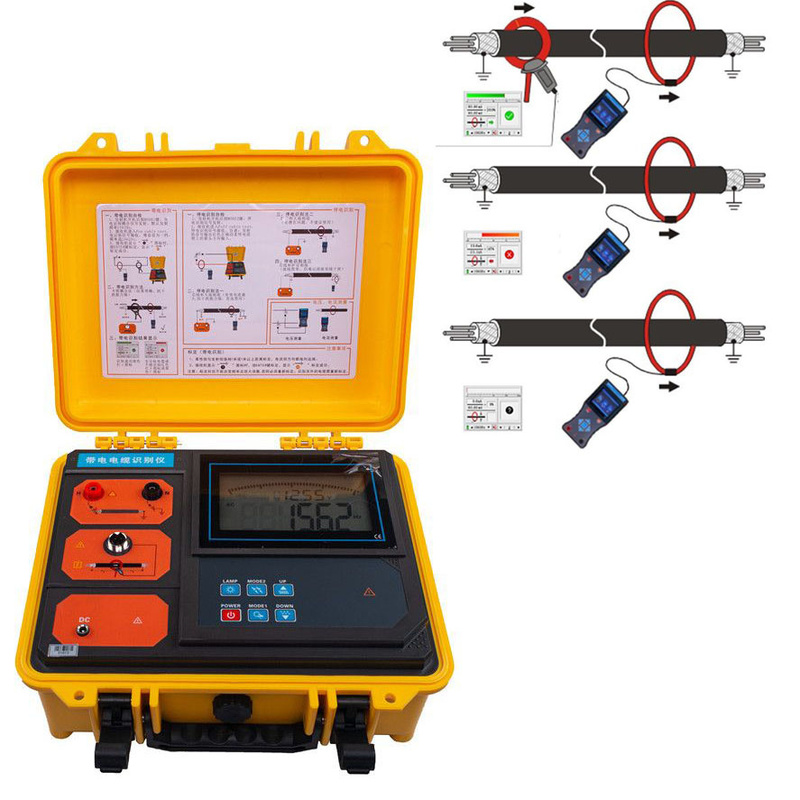

Guess what? This product can do so much more than you think. It can tell if a cable is live or de - energized, and it can test both AC current and voltage. How does it do all that? Well, it’s got a transmitter, a transmitting current clamp, a receiver, and a flexible current clamp for receiving signals. When it comes to the numbers, the voltage range for cable testing goes from AC 0.00V all the way up to 600V (50Hz/60Hz). The AC current range is from 0.00A to a whopping 5000A (50Hz/60Hz). And the best part? It can measure current frequencies between 45Hz and 70Hz.

Main Function

Handheld type receiver has 3.5inch color LCD Screen
Transmitter adopts integrated special toolbox design, Good wear resistance, heat resistance and insulation performance.
Large-diameter clamp size Φ120mm
Multiple frequency to identify energy cable625Hz,1562Hz,2500Hz,10kHz
11.1V large-capacity rechargeable lithium battery, fully charged and continuously working for about 8 hours
De-energy cable identifying distance up to 10km, energy cable indentifying distance up to 5km
International standard IEC61010-1 CAT 600V,IEC61010-031,IEC61326. Pollution degree 2

Test range	De-energy cable identifying: The coil can detect pulse signals with a loop resistance of 0Ω~10kΩ; when the detection loop resistance is 10kΩ, the transmitter battery must be guaranteed to be above 11V (generally, the cable length can reach 0-10 kilometers, mainly by grounding resistance and wire Cable resistance)
Test range	Energy cable identifying: The coil can detect pulse signals with a loop resistance of 0Ω~200Ω; when the detection loop resistance is 200Ω, the transmitter battery must be guaranteed to be above 11V (generally it can reach a cable length of 0-5 kilometers, mainly by grounding resistance and wire Cable resistance)
Range	AC Voltage: 0.00V~600V(50Hz/60Hz)
	AC Current: 0.00A~5000A(50Hz/60Hz)
	Current frq: 45Hz~70Hz
Accuracy	AC Voltage :±2%±3dgt
	AC Current :±2%±3dgt
	Current frq :±2%±3dgt
