| 원래 장소: | 중국 |
| 브랜드 이름: | XZH Test |
| 인증: | CE/ISO |
| 모델 번호: | XHSB505B |

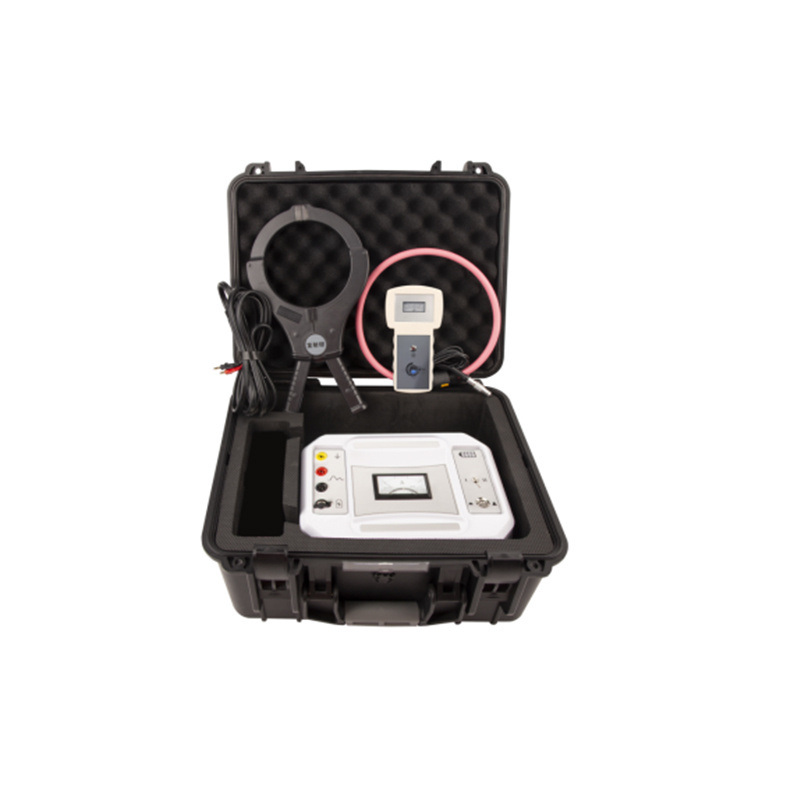

XHSB505B live cable identifier is developed by referring to foreign advanced technology and using modern electronic technology and tool technology under the guidance of electromagnetic field theory according to a number of cable field identification problems urgently needed to be solved by high-voltage cable construction, installation and maintenance personnel.
Your logo can be put on the panel of the equipment.Each equipment got a series number.
| Identification method | to judge the direction of the hand swing |
| Clamp | Φ125mm |
| Output voltage | Gear I (direct connection method) : 250V , Grear II (coupling method) : 600V; |
| Test range | Direct connection method: 0Ω ~ 1.5k , Coupling method: 0Ω ~ 40Ω; |
| Pulse current | 0 ~ 15A; |
| Pulse period | 2.5S/ time; |
| Power supply | transmitter 12VDC lithium battery, handheld receiver No. 5 battery. |
| Serial number | Name | quantity |
|
1
|
Transmitters | 1 |
|
2
|
Receivers | 1 |
|
3
|
Charger | 1 |
|
4
|
Output line-red | 1 |
| 5 | Output line-black | 1 |
| 6 | Launcher | 1 |
| 7 | Receiver clamp | 1 |
| 8 | 5A battery | 2 |
